Planning Hot Water for a Custom Home

A high-efficiency water heater does not automatically create an efficient delivery system. Water can still cool in a long pipe, and a remote fixture can still send that standing water down the drain while the homeowner waits. EPA's current WaterSense guidance treats generation, distribution, and use as connected parts of one system. That is the useful starting point for a new custom home.

Write a short performance brief while the floor plan is flexible. Identify the fixtures used every day, the simultaneous-use patterns the household expects, and the locations where a long wait would be especially disruptive. Include the kitchen, primary bath, guest rooms, laundry, scullery, wet bar, and covered outdoor spaces only when they are actually part of the program.

Then give the design team a measurable task: map the route and estimated stored volume between the hot-water source or recirculation loop and every important fixture. EPA recommends using 0.5 gallons of stored water as a design benchmark when possible, but it is guidance rather than a universal code requirement. A qualified plumbing professional should determine pipe sizes and the compliant final design for the actual home.

Room relationships determine much of the system before a pipe is selected. Grouping kitchens, bathrooms, and laundry areas into a practical plumbing zone can shorten routes, reduce stored water, and simplify the hidden work. The goal is not to force every wet room into one corner. It is to understand what an architectural move adds to the distribution system before the plan is approved.

Review both floor plans and building sections. A primary bath may look close to the mechanical room in plan but require a circuitous route around beams, stairs, a vaulted ceiling, or an exterior wall. An island sink may need a carefully coordinated path through the floor. A guest wing or outdoor room can create a separate remote cluster that deserves its own comparison rather than an improvised branch after framing.

Mark the proposed water-heater location, pipe chases, manifold or loop, valves, insulation, penetrations, and service access on the coordinated drawings. Compare those routes with structure, ducts, electrical work, cabinetry, waterproofing, and the building envelope. Max Built can help keep those design and construction decisions aligned with the broader custom-home plan before concealed spaces become crowded.

There is no single distribution layout that wins for every custom home. A compact core can work well when wet rooms and the water heater are close. A carefully designed trunk-and-branch system may suit a smaller service area. A manifold can provide direct fixture runs, while a large or divided floor plan may lead the team to compare more than one water-heating source or a recirculation loop.

Do not compare those options by label alone. Trace the pipe length and inside diameter to each fixture, estimate the stored water volume, and review the expected pressure and simultaneous demand. A larger pipe is not automatically better; excess diameter stores more water, while undersizing can compromise flow and code compliance. Pipe sizing belongs to the qualified designer or plumber using the home's actual fixture schedule and governing requirements.

If recirculation is considered, define when the pump runs. EPA and ENERGY STAR guidance favor demand-initiated operation over continuous circulation because an always-hot loop can increase distribution losses. Show the loop, return, controls, insulation, balancing, and the fixtures it serves. A recirculation line without an operating sequence leaves an important performance decision unfinished.

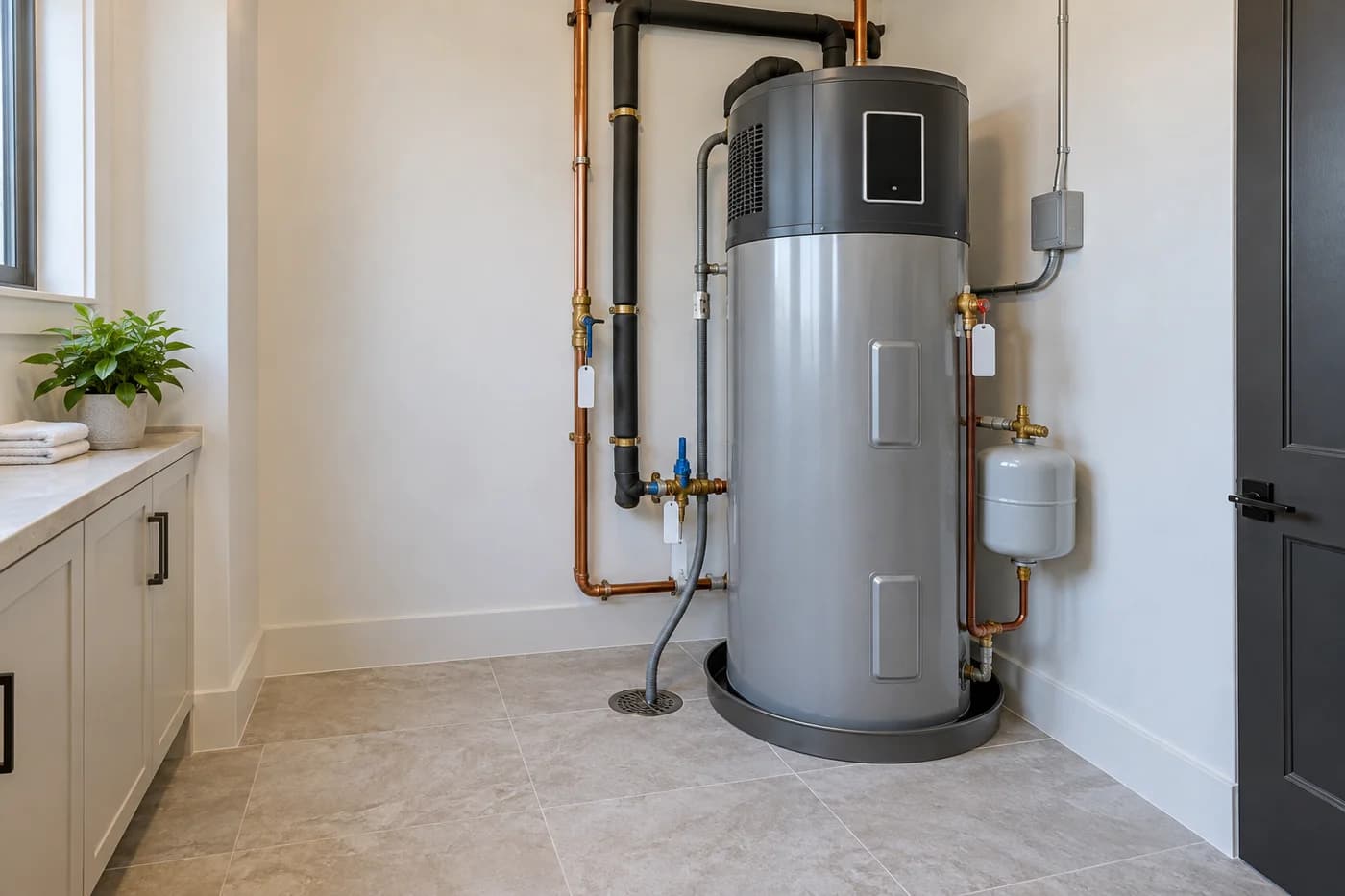

Equipment location affects pipe distance, replacement access, noise, drainage, power or fuel, combustion requirements where applicable, and the rooms around it. Place the selected equipment at real dimensions on the plan. Include connections, drain pan, relief discharge, shutoffs, expansion control where required, condensate for condensing or heat-pump equipment, working clearances, and a path to remove and replace the unit without dismantling finished rooms.

A heat-pump water heater adds airflow, sound, and cool exhaust to the space-planning discussion. ENERGY STAR advises following the selected manufacturer's free-air-volume, clearance, ducting, condensate, electrical, and service requirements. A small closed closet that fits the tank outline may not support the equipment's operation. Nearby bedrooms or quiet living spaces may also change the preferred location.

Do not choose an equipment room independently from the distribution plan. The most central location may shorten pipes but create poor access or unwanted sound; a remote garage location may provide space but lengthen the routes. Compare the complete system, including architecture, enclosure, utilities, drainage, maintenance, and the household's use pattern, before releasing the floor plan.

Before rough-in, reconcile the plumbing drawings with the current architectural, structural, cabinet, appliance, and mechanical documents. Confirm fixture model requirements, water-heater data, pipe sizes, insulation, valve locations, recirculation controls, drains, penetrations, and access panels. A generic plumbing note cannot replace a route that has been checked against the real building.

Inspect and photograph concealed work before insulation and drywall hide it. Confirm that pipe paths and diameters match the approved design, insulation is continuous where required, controls and sensors are in their intended locations, and service valves remain reachable. Record field changes on the final documents rather than relying on memory at handover.

At startup, have the responsible professionals check the equipment installation and control sequence, purge and commission the system as applicable, verify recirculation operation, and measure delivery behavior at representative fixtures. Give the homeowner the operating instructions, maintenance requirements, shutoff map, product documents, and final system drawings. That turns a hidden network of pipes into a system the household can understand and maintain.
